Visualization for printing and converting machinery.
Web paths, register control, drying and finishing are almost impossible to photograph. Animation follows the web through every unit and shows what your control system is actually doing.
What we visualise in this sector.
Printing units
Show ink transfer, register and print quality control.
Web handling
Follow the web through tension control, splicers and turn bars.
Laminating and coating
Cross-sections of layer build-up and drying.
Die cutting and finishing
Fast cyclic motion slowed down and explained.
Inspection systems
Show what the camera sees and how rejects are handled.
Digital retrofits
Explain upgrades to existing presses.
Services used most here.
Every asset comes from one prepared CAD model.
Examples from our work.
Real projects built from engineering CAD. Each page shows the full render set or film, how it was made and what similar work costs. See the full portfolio
5 rendersRotary die-cutting machines, two models
Two label die-cutting models from one range, rendered in one matching visual standard.

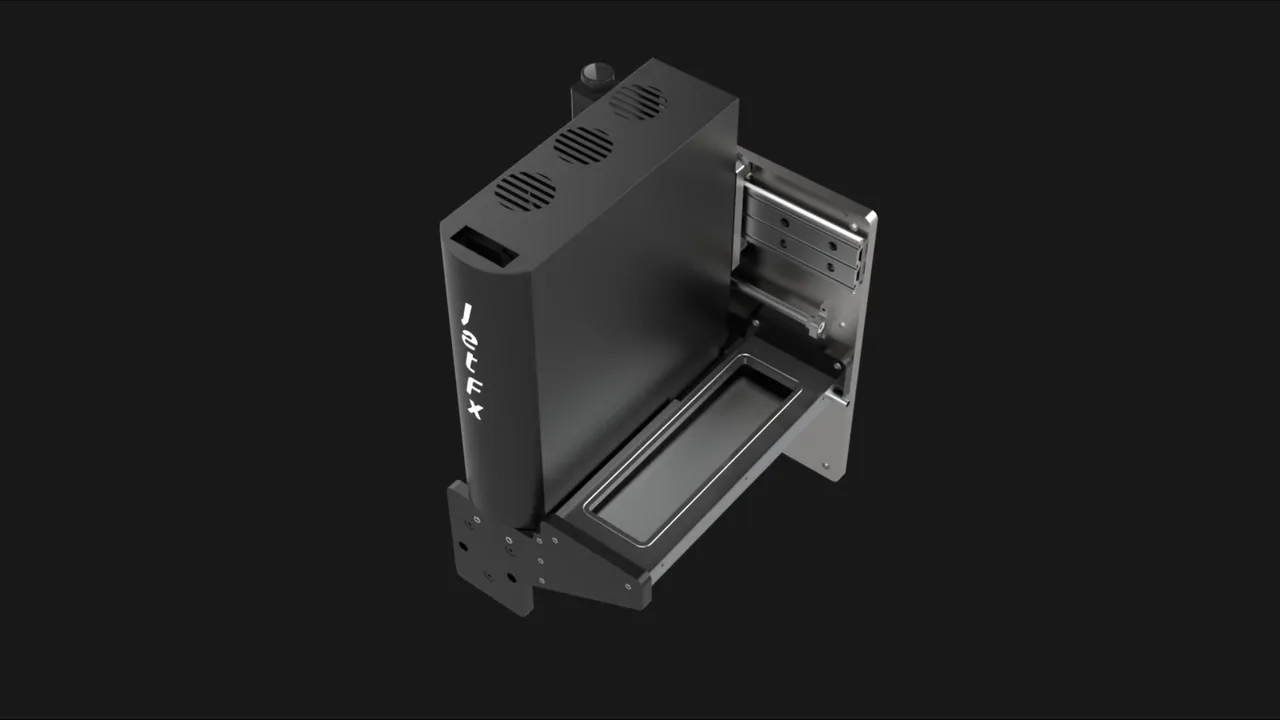

2 films, 5 rendersJetFX print-head module
Cinematic film, 360 turntable and five renders of one inkjet module.

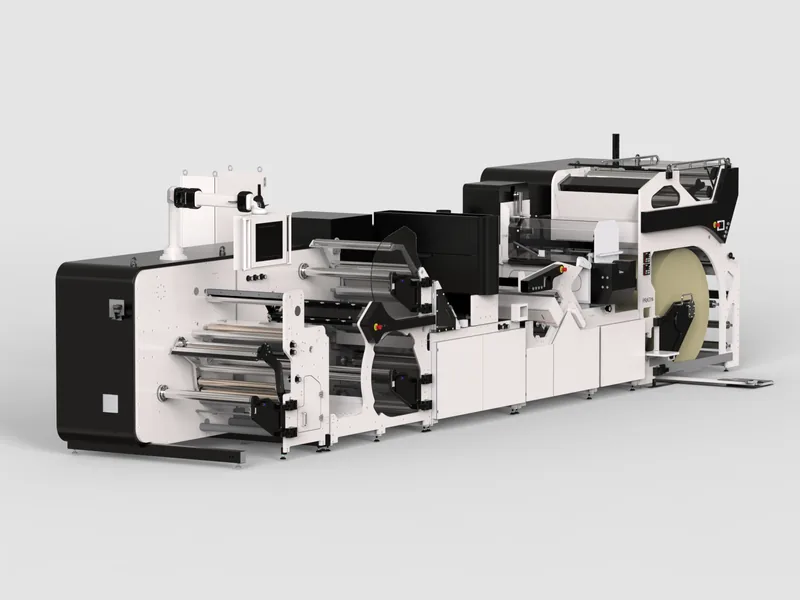

4 rendersDigital label printing line
Modular digital press and finishing line, full line and module detail.
Questions.
Can you animate the web itself?
Yes. Flexible web and material behaviour is simulated so the path, tension and speed look correct.
Our machine is enormous. Is that a problem?
No. Large assemblies are normal here, and we simplify only what the camera never sees.
