JetFX inkjet module on stand, every angle.

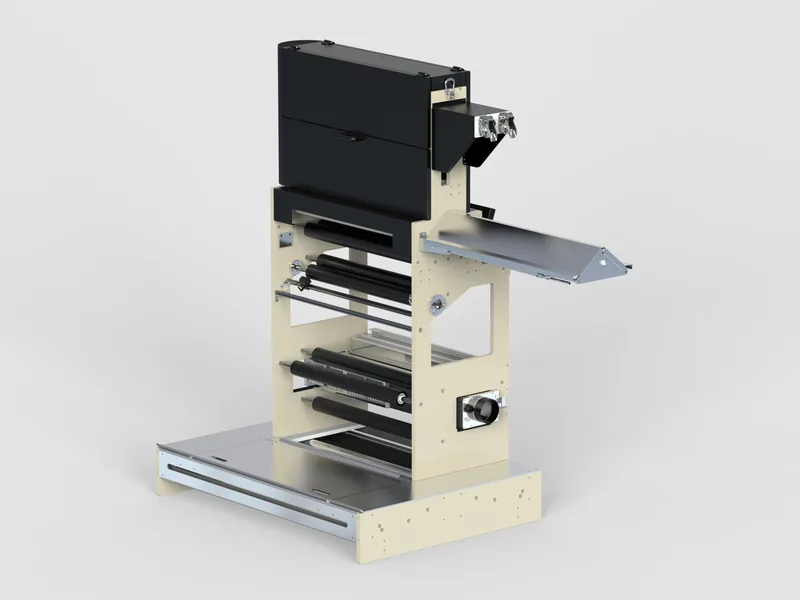

A stand-mounted JetFX inkjet unit: the print head on top, a roller path through the frame, a side feed tray and a machined base. Six views from one prepared model show the module the way a buyer walks around it.
- Product
- JetFX inkjet module on stand
- Sector
- Digital printing and embellishment
- Built from
- Engineering CAD
- Delivered
- 6 stills, 4:3
- Views

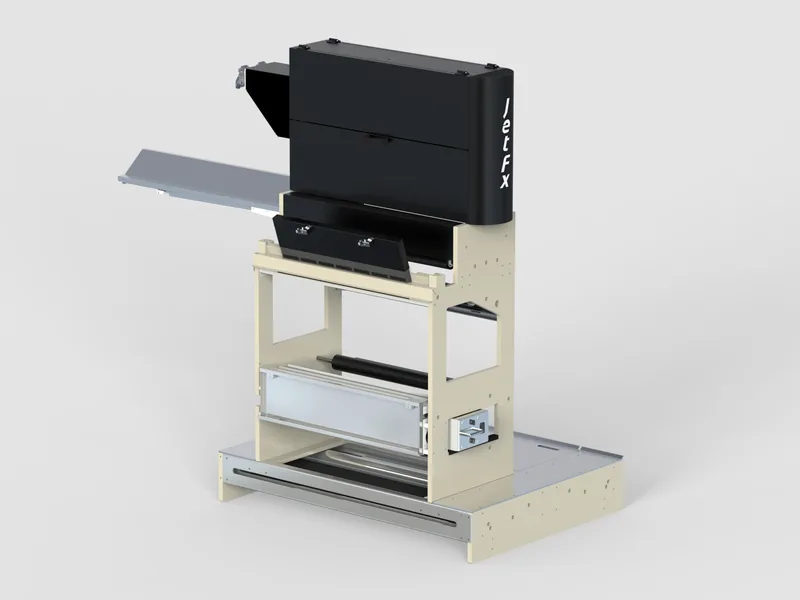

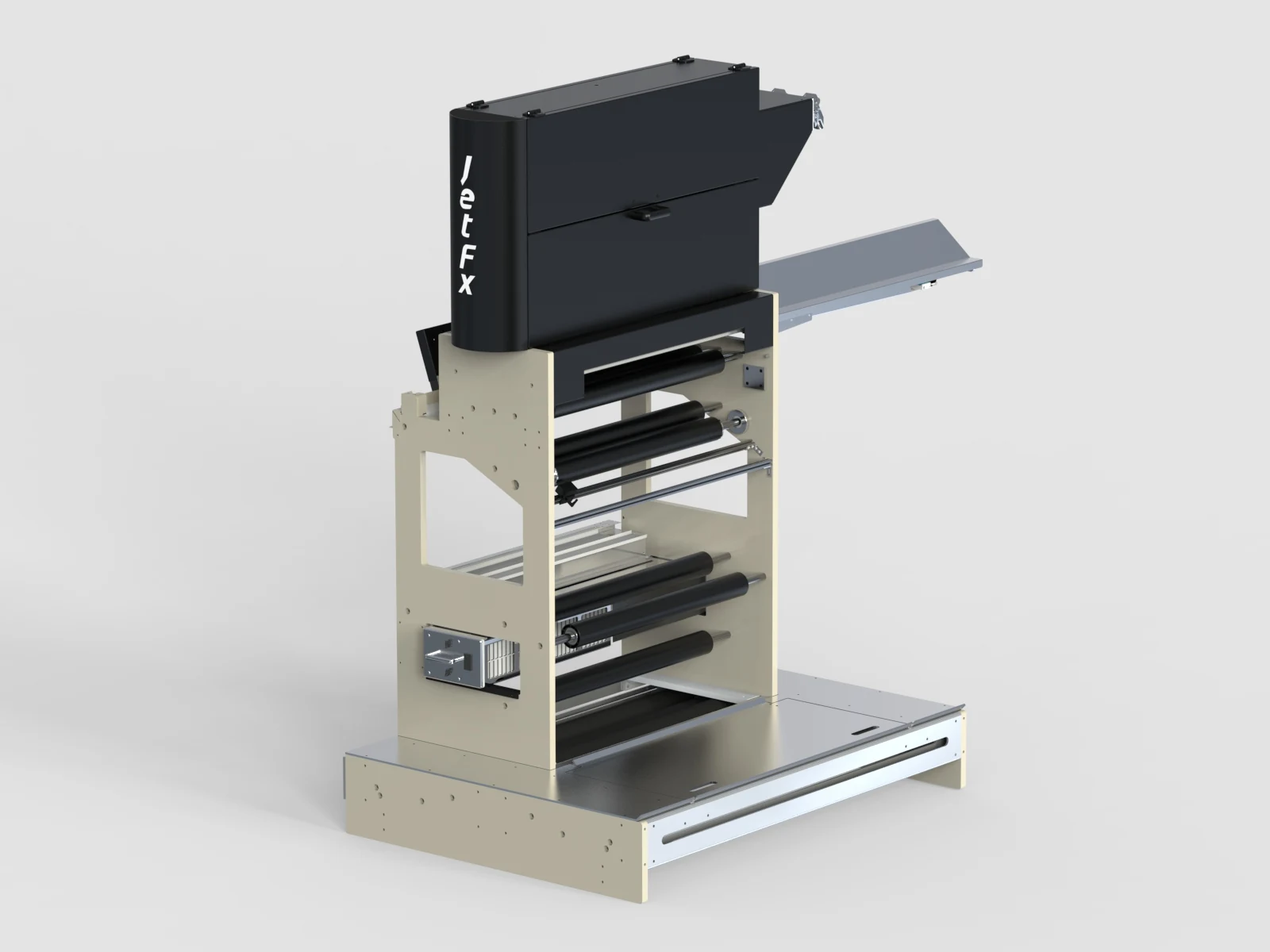

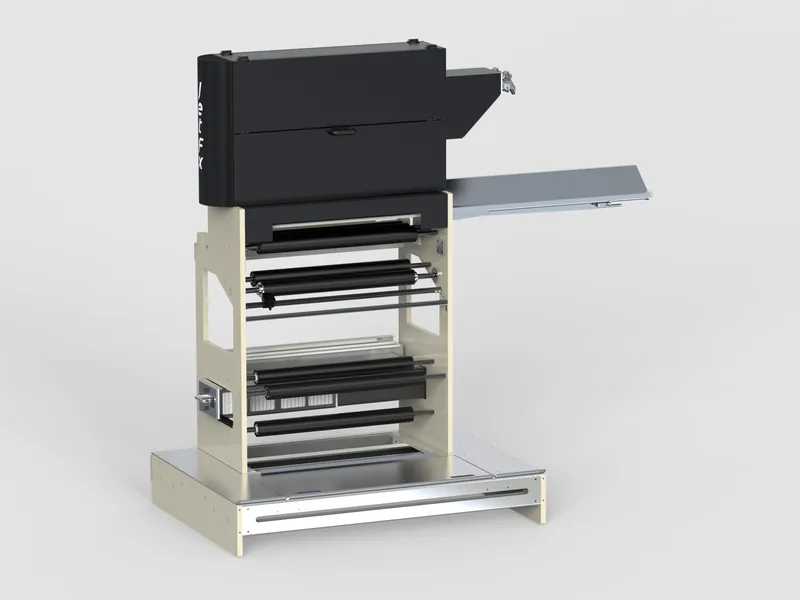

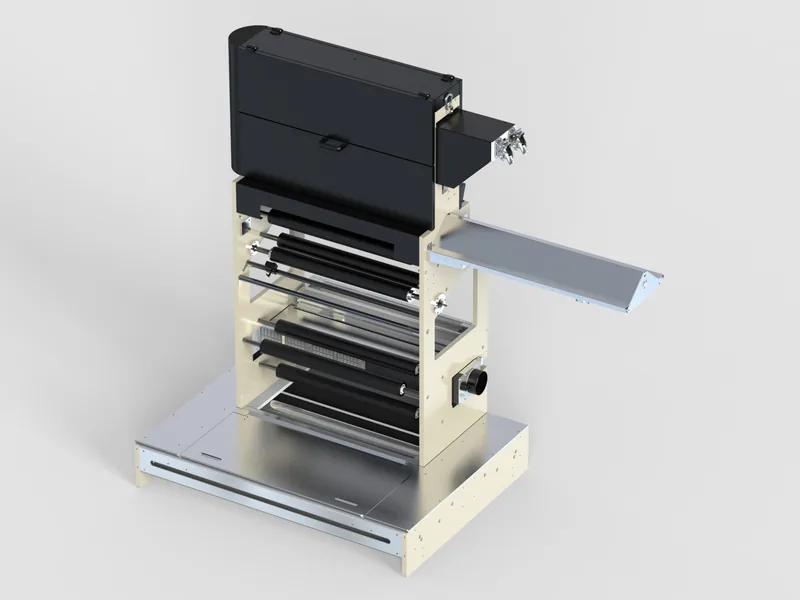

- Hero, sides, front, rear, detail
- Used for
- Product page, brochure, trade show
The render set.
6 stills from one prepared model, delivered at print resolution. Select any image to view it full size.
What the visuals had to do.
- Show the unit on its ownThe module is offered as its own unit, so it needed visuals without the full system around it.

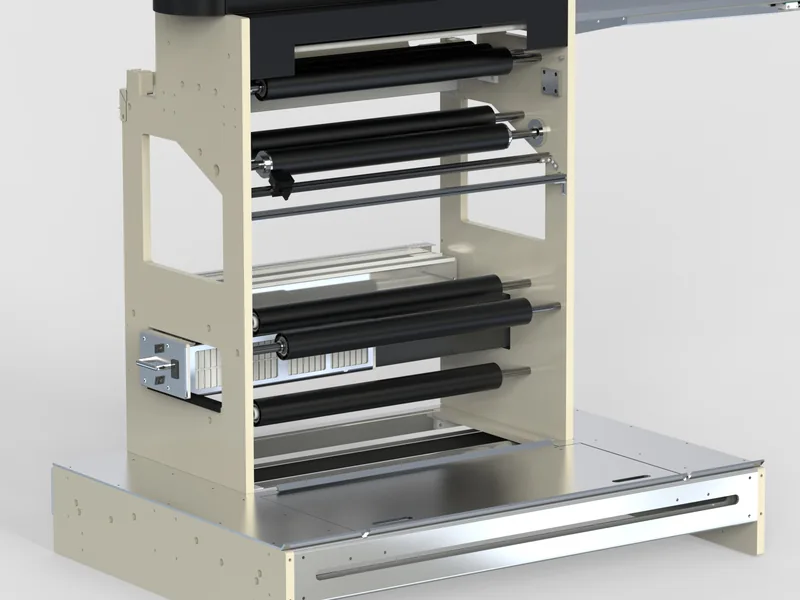

- Explain the web pathThe rollers through the stand show how material passes under the print head, which a flat drawing cannot.
- Every side coveredSix views give sales, product pages and spare-part listings an image for every question.
How we built it.
The module was prepared from engineering CAD with the print head, rollers, feed tray, stand plates and machined base kept at engineered dimensions.
Materials follow the real build: a black print-head housing with the JetFX mark, cream powder-coated stand plates, rubber-covered rollers and brushed aluminium, on a light studio floor that suits catalogues and product pages.
The same prepared model is ready for a 360 turntable or a web path animation, like the one made for the JetFX print-head module.
Where these visuals work
- Product pages and brochures
- Distributor and dealer sales kits
- Trade show panels and screens
- Spare-part and configuration sheets
Services behind this project.
One prepared model feeds every service below, so each further asset costs less than the first.
What a project like this costs.
Fixed prices, CAD preparation included, full commercial usage rights on payment. Complex machines are scoped individually. Full pricing
Questions.
Can you render each module of our system separately?
Yes. Once the system is prepared in 3D, each module can be rendered alone, which is ideal for spare parts, upgrades and configuration sheets.
Can you add a 360 turntable of this module?
Yes. The prepared model can be turned into a 360 turntable or a short feature film. Feature films start at $3,900.
